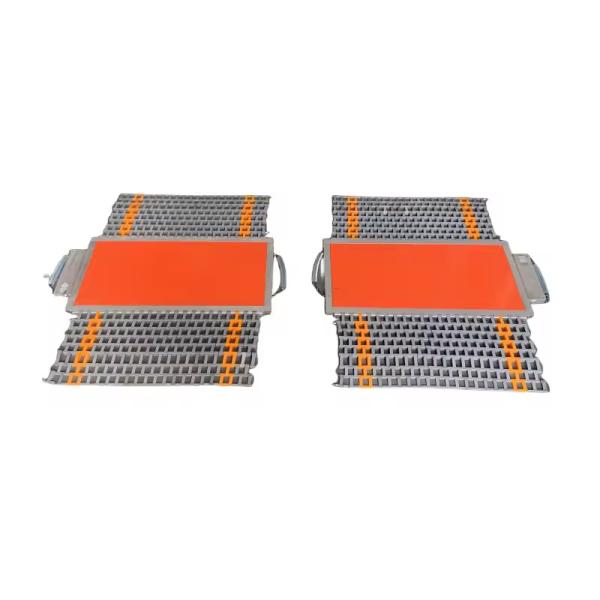

Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks

MOQ : 1

Price : USD5000~USD20000/SET

Payment Terms : 30% T/T in advance

Supply Ability : 100sets/month

Delivery Time : within 2 weeks after payment

Packaging Details : The body of truck scale is nude packed and the accessories part are packed in wooden case

Type : Axle Scale

Power Supply : DC 12V Lithium battery

Display Type : Touch Screen

Material : Stainless Steel/Plastic glue board

Bench size : 800*440mm

Transmission distance : 100m

Contact Now

Products Description

The Weighing Axle Load Meter is composed of high strength steel plate and two rubber slope, dual channel design, high precision integral weighing platen with high detection accuracy. The indicator uses 10.1 inch Android touch screen, which is input by touch mode, and has
technical support such as statistical analysis and database. Equipped with high speed printer, can print time, date, car number and other information.

Product Paramenters

Product Name		Portable Axle Load Meter
Model		BH-ALM
Axle load plate
Bench size		800*440mm
Standby time		48h
Transmission distance		100m
Dynamic error		±1%-3%F.S
Static accuracy		0.5%F.S
Radio frequency		915MHz
Applicable environment		-20℃-+80℃
Specification		2 Pads
Class of protection		IP65
Sensor
Rated load of each pad		20t
Sensitivity		0.5±0.2mV/V
Comprehensive accuracy		±0.2%F.S
Zero equilibrium		±1%F.S
Compensation temperature range		-10℃-+50℃
Operating temperature range		-10℃-+50℃
Safety load		120%F.S
Ultimate load		150%F.S
Recommended excitation voltage		5-12V
Class of protection		IP66
