LED Floor Scale Load Cell Display YaoHua Xk3190 a12e Scales digital weighing indicator
Product description and pictures
Description:
1,High precision A/D conversion, the readability of up to 1/30000;
2,The code calls convenient display, observation and analysis of weight tolerance instead of feeling;
3,Special software technology to enhance the system's ability to resist vibration;
4,Zero tracking range, set zero (boot / manual) range,
can be set separately;
5,Digital filtering speed, amplitude and stable time can be set;
6,With the function of weighing and counting;
(the weight of the unit has power down protection)
7,Multiple backlight modes can be selected;
8,Random charging; with less pressure indicating and protecting device;
9,Random configuration 6V/4AH maintenance free battery
Technical Parameter: 1,A/D conversion mode: sigma delta conversion 2,A/D conversion rate: 20 times / sec 3,Maximum A/D conversion: 20 bit 4,Input signal range: 10mV ~ 15mV 5,Input sensitivity: more than 1 V/e 6,Sensor for bridge power supply C5V;
| Model | A12E |
| Color | White Black |
| Power | AC/DC (built in rechargeable battery 6V/4AH) Auto power off at low battery |
| Conversion | High precision A/D conversion, the readability of up to 1/30000 |
| Resist Vibration | Special software technology to enhance the system's ability to resist vibration |
| Function | Zero tracking range, set zero (boot / manual) range, can be set separately |
| Display | Multiple backlight modes can be selected |
| Battery | Random configuration 6V/4AH maintenance free battery |
| Input sensitivity | ≥1 muv /e |
| Input signal range | -10mv ~ 15mV |
| Load cell | 1.5-3mV/V |
Our truck scale is often equipped with the XK3190-DS8 series and digital instrument D2008 series. In addition, there is also the axle weighing instrument independently developed by Truckmass. You can choose the specifications of the built-in micro printer according to your needs. Accurate and stable, intuitive reading, and convenient operation. If you need other brands and models, please feel free to consult.
|
|

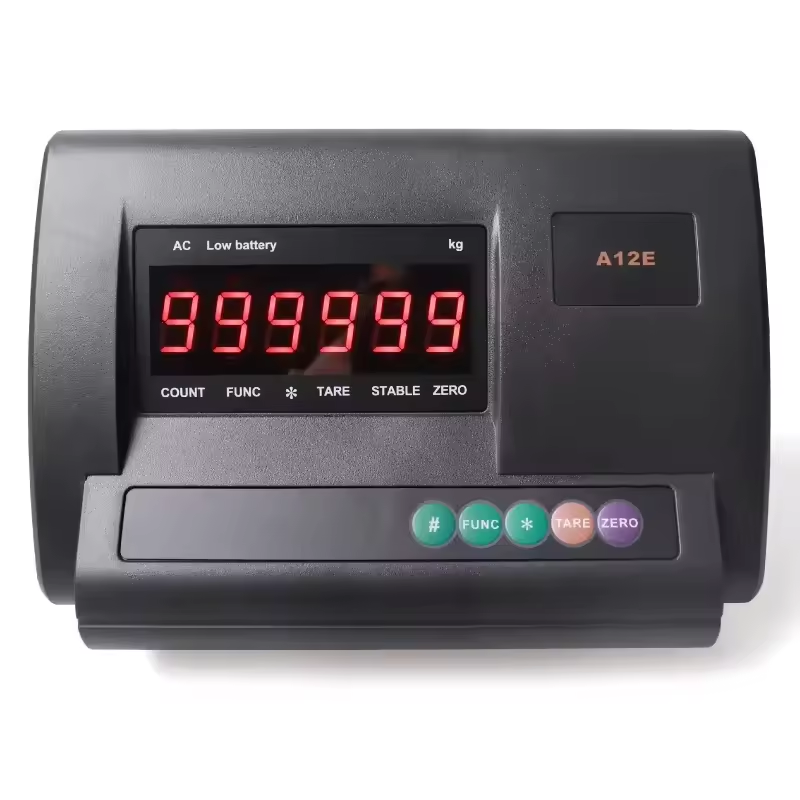

LED Floor Scale Load Cell Display YaoHua Xk3190 a12e Scales digital weighing indicator Images
|
